Product Overview

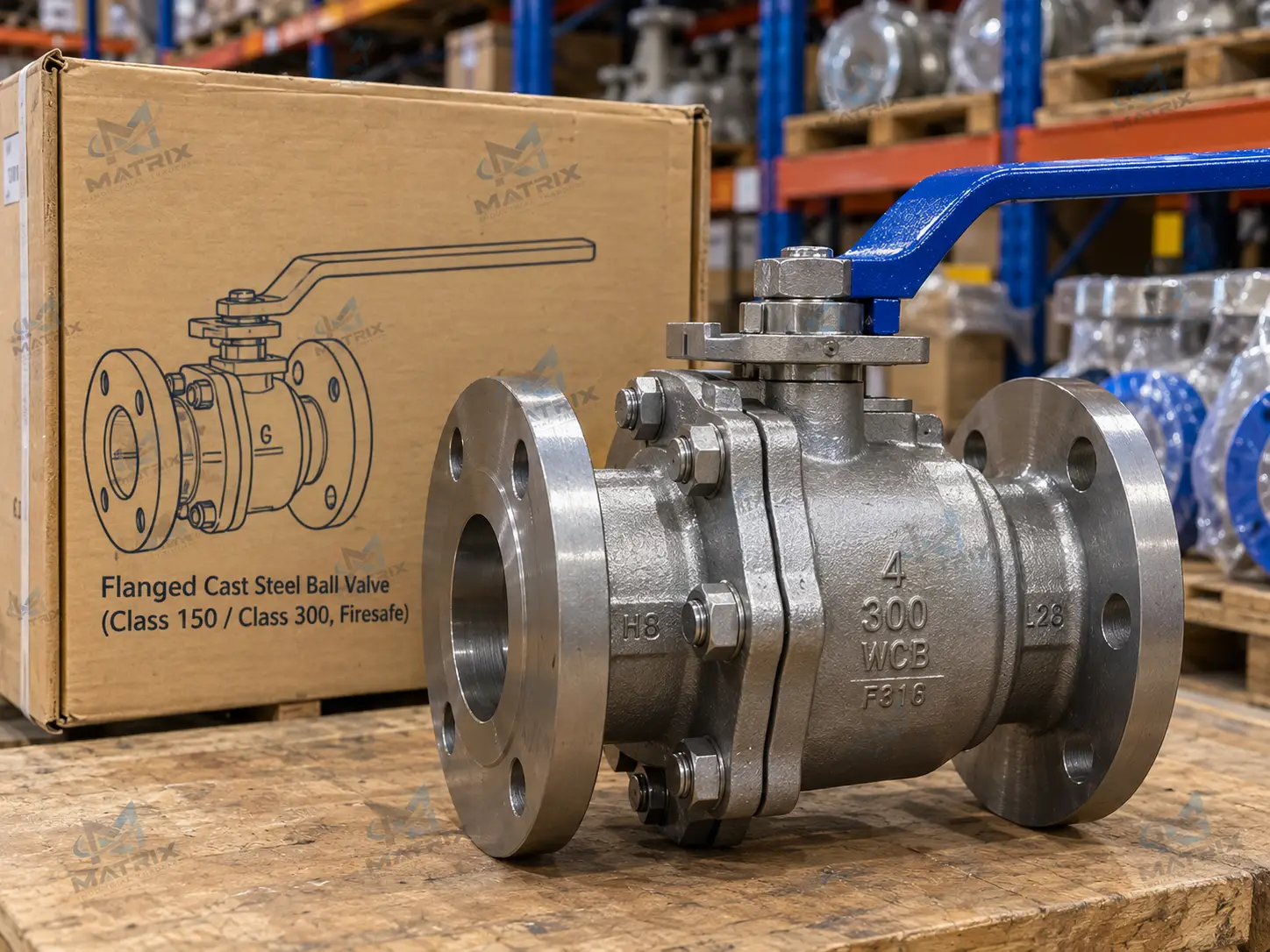

Matrix Industrial Traders Flanged Cast Steel Ball Valves are designed for severe service isolation. With a precision-machined solid stainless steel ball and reinforced PTFE seating, this valve guarantees bi-directional, zero-leakage isolation across corrosive fluids, gases, and steam.
Key Features
- Blowout-Proof Stem Design: Enhanced operational safety under elevated line pressures.
- Firesafe Certified (API 607): Secondary metal-to-metal sealing in the event of fire.
- ISO 5211 Direct Mount Pad: Enables quick pairing with pneumatic or electric actuators without external brackets.
- Anti-Static Grounding Device: Eliminates static electrical buildup between ball and stem.
Technical Specifications
Scroll horizontally to view complete specifications
| Parameter | Standard Specification |
|---|---|
| Size Range | DN15 to DN300 (1/2″ to 12″) |
| Pressure Class | ANSI Class 150, Class 300, PN16, PN40 |
| Body Material | ASTM A216 WCB / ASTM A351 CF8M |
| Ball & Stem | SS304 / SS316 |
| Seat Material | Reinforced PTFE (R-PTFE), PEEK for high temp |
| Operating Temperature | -29°C to +200°C (up to 260°C with PEEK seats) |
| End Connections | Flanged RF ASME B16.5 |
Applications & Industries
Refineries, chemical processing plants, thermal power plants, paper & pulp, district heating, and gas transmission networks.
