Product Overview

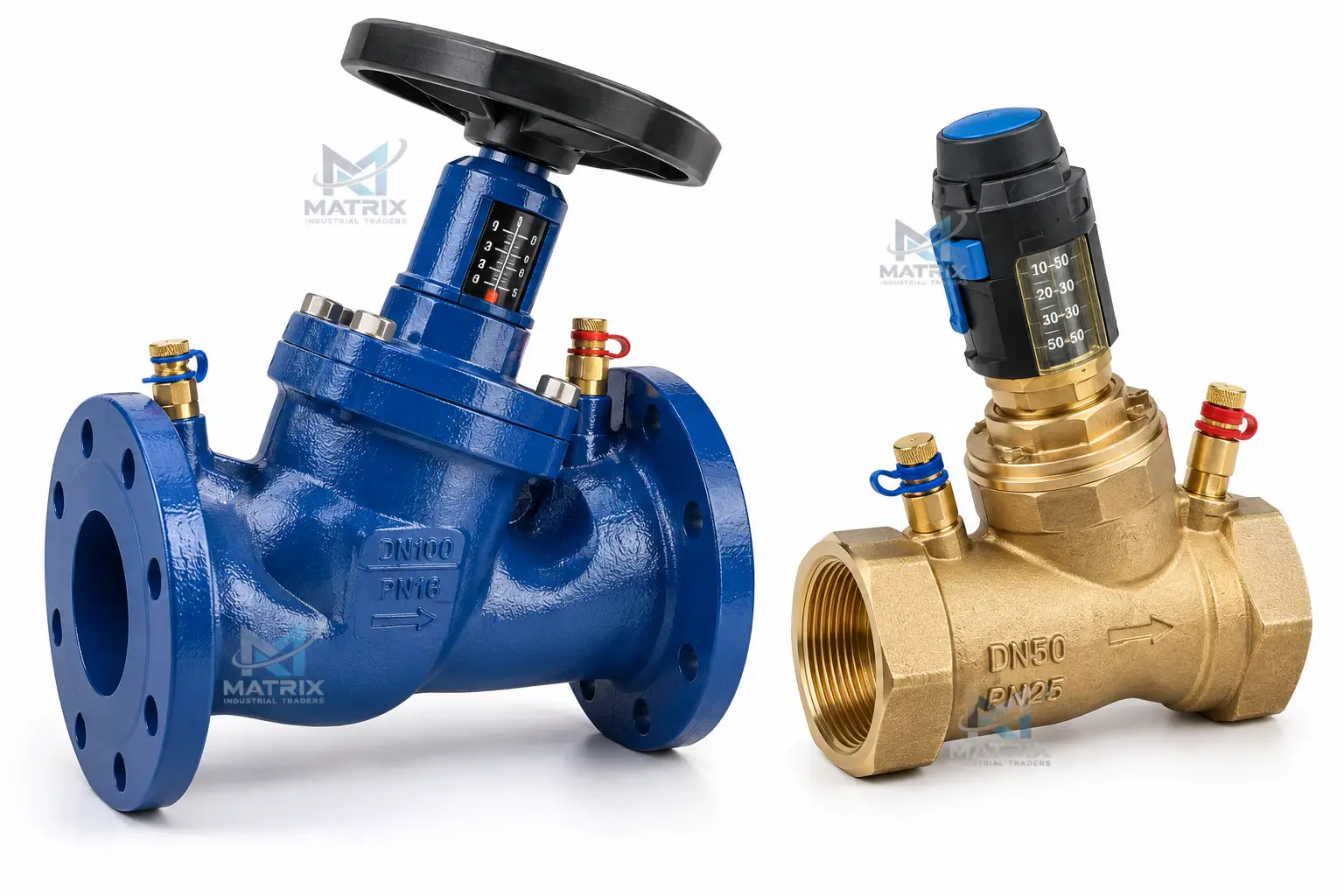

The Matrix Industrial Traders Hydronic Balancing Valve ensures optimal thermal energy distribution throughout complex pipe distribution networks. By preventing over-pumping and balancing branch circuits, this valve cuts pumping costs and guarantees uniform heating/cooling comfort across commercial buildings and industrial campuses.
Key Features
- Integrated P/T Measurement Ports: Self-sealing dual test cocks for accurate differential pressure and flow rate readings with digital flow meters.
- Digital Micro-Dial Handwheel: High-resolution micrometer position indicator with tamper-proof memory locking stop.
- Positive Shutoff Function: Acts as an isolation valve without altering the pre-commissioned balance setting.
- Robust Bronze / Cast Iron Body: Resists dezincification, erosion, and high operating pressures.
Technical Specifications
Scroll horizontally to view complete specifications
| Parameter | Standard Specification |
|---|---|
| Available Sizes | DN15 to DN50 (Female Threaded BSP/NPT), DN65 to DN300 (Flanged PN16) |
| Pressure Class | PN16 / PN25 |
| Body Material | Ductile Iron (EN-GJS-450-10) for Flanged; DZR Brass for Threaded |
| Disc / Seat Seal | EPDM resilient seat with SS304 orifice plate |
| Measurement Accuracy | ±5% across nominal flow range |
| Working Temperature | -10°C to +120°C |
Applications & Industries
HVAC chilled water riser balancing, secondary pumping circuits, district cooling substations, radiant heating manifolds, and industrial fan coil piping loops.
