Product Overview

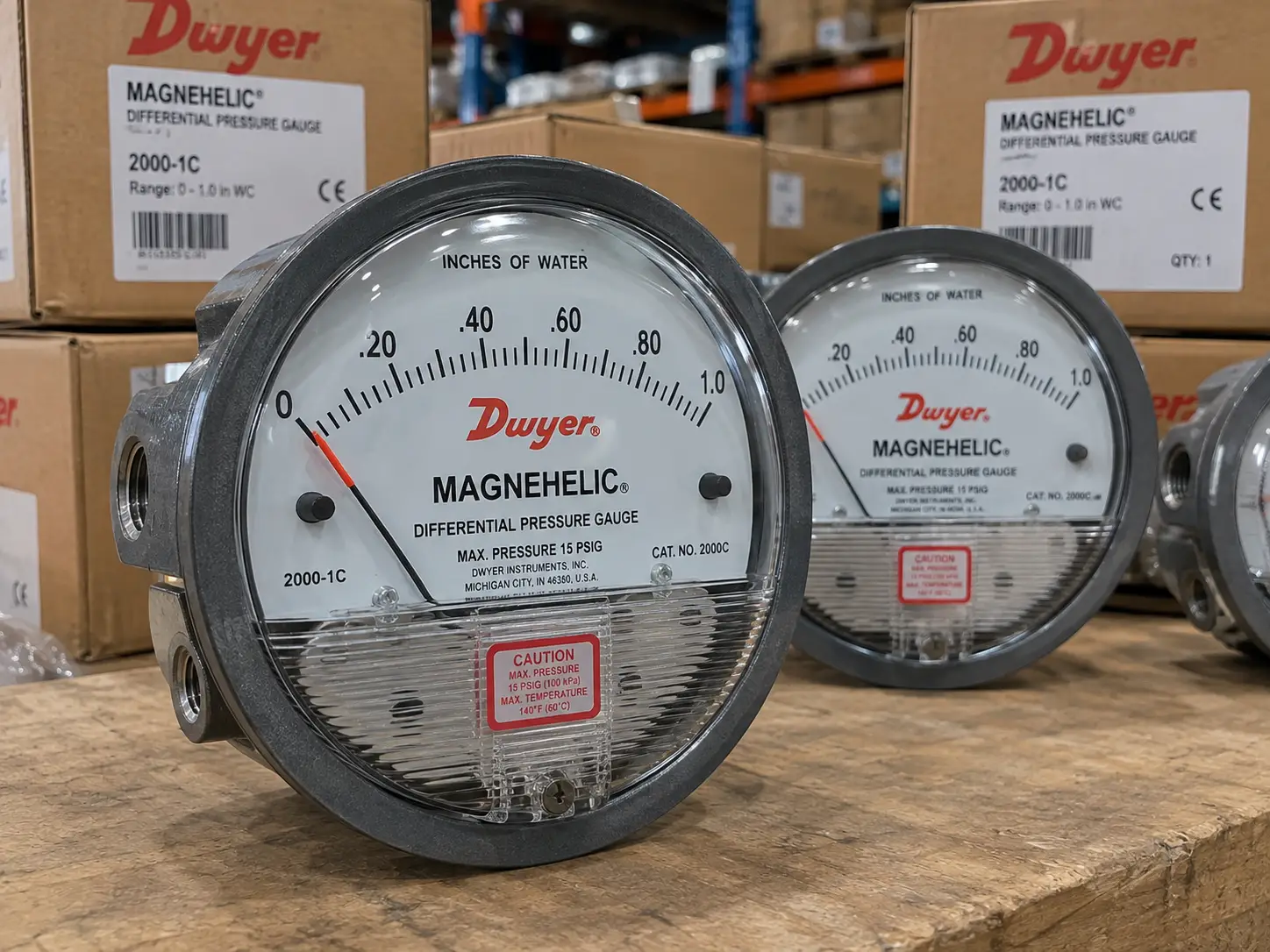

Matrix Industrial Traders Magnehelic Differential Pressure Gauges represent the gold standard in low-range differential air pressure measurement. Employing a frictionless magnetic helix drive, this gauge measures positive, negative, or differential air pressures with instantaneous response and zero hysteresis.
Key Features
- Magnetic Frictionless Movement: Eliminates gear friction, wear, and mechanical backlash for prolonged calibration stability.
- High Overpressure Protection: Internal rubber diaphragm safely absorbs overpressure shocks up to 1.7 Bar (25 PSI).
- Clear Acrylic Bezel & Scale: Distortion-free viewing with dual zero-adjustment access.
- Dual Porting: Includes side and back dual 1/8″ NPT high and low pressure ports for surface or flush panel mounting.
Technical Specifications
Scroll horizontally to view complete specifications
| Parameter | Standard Specification |
|---|---|
| Common Pressure Ranges | 0-60 Pa, 0-125 Pa, 0-250 Pa, 0-500 Pa, 0-1000 Pa, or -50 to +50 Pa |
| Measurement Accuracy | ±2% of full scale at 21°C |
| Maximum Line Pressure | 68 kPa (10 PSI) standard; high-pressure rated to 25 PSI |
| Housing Material | Die-cast aluminum case with gray powder coat finish |
| Compatible Media | Air and non-combustible compatible gases |
| Operating Temperature | -6.7°C to +60°C |
Applications & Industries
Pharmaceutical cleanroom cascade pressure monitoring, hospital isolation rooms, HEPA filter loading status, laminar flow benches, and AHU blower fan status.
